STRAIGHT-TYPE CABLE ROLLER (V FRAME, GROUND PLATE)
STRAIGHT-TYPE CABLE ROLLER (V FRAME, GROUND PLATE)
Product Code: GCC-CRS6

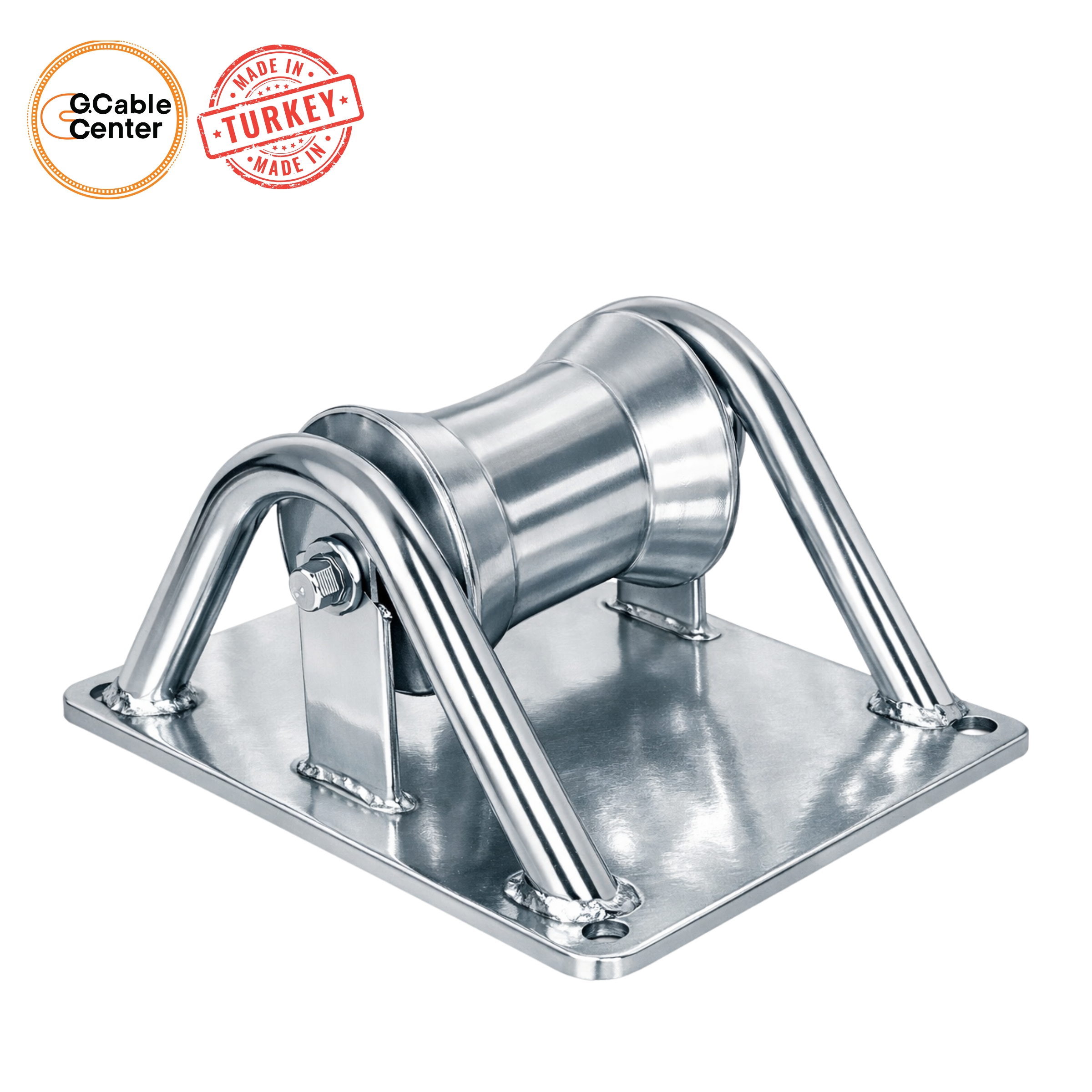

GCC-CRS6 Straight-Type Cable Roller (V Frame, Ground Plate) is a durable guiding roller designed to support smooth and safe cable movement along straight cable routes during installation. Its V-frame structure provides enhanced stability and precise cable positioning while guiding the cable in a controlled path. It supports smooth and controlled cable movement while preventing the cable from rubbing against the ground or sharp edges. Its precision roller system minimizes friction and ensures stable cable guidance without twisting, excessive bending, or surface damage. The ground plate structure and fully galvanized body provide excellent stability, corrosion resistance, and long service life under outdoor working conditions.
Applications
- Straight-line cable installation in underground and overhead projects
- Long cable routes requiring smooth, stable, and low-friction guidance
- Heavy-duty cable laying operations where cable protection and alignment are critical
Technical Specifications
- Maximum cable diameter: 160 mm
- Dimensions (L × W × H): 350 × 250 × 200 mm
- Weight: 4.60 kg
- Roller material: Delrin, Polyurethane, or metal (steel) (specify at order)
- Body coating: Fully Galvanized Body
Roller Material Options
- Delrin: Long service life, corrosion-resistant, low-friction, quiet operation, and gentle on cable sheaths and indoor floors
- Polyurethane: Excellent wear resistance, high load capacity, shock-absorbing, and non-marking, ideal for both indoor and outdoor applications
- Metal (steel): Maximum impact and abrasion resistance for rugged sites, sharp edges, and heavier cables
