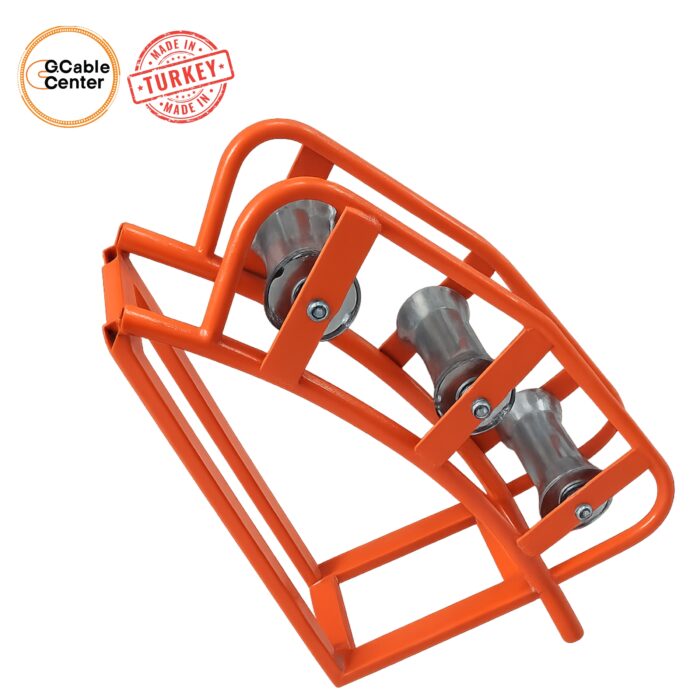

MANHOLE CABLE ROLLER (3 ROLLERS)

MANHOLE CABLE ROLLER (3 ROLLERS)

Product Code: GCC-CRM3

GCC-CRM3 Manhole Cable Roller (3 Rollers) is a heavy-duty guiding roller designed for safe and controlled cable guiding inside manholes, underground ducts, and trench systems. Its three-roller configuration provides balanced load distribution and stable multi-point support, allowing the cable to pass smoothly through direction changes while preventing contact with concrete edges, sharp surfaces, or the ground. Its robust frame construction and fully galvanized body provide excellent mechanical strength, corrosion resistance, and long service life under demanding job-site conditions.

Applications

• Manholes, underground ducts, and chamber entries requiring controlled cable guidance
• Trench and duct systems where low-friction directional guidance is critical
• Power transmission, energy, and infrastructure projects to reduce side pressure and pulling force
• Heavy-duty cable laying operations requiring stable support and precise turning control

Technical Specifications

• Maximum cable diameter: Ø 160 mm
• Dimensions (L × W × H): 570 × 275 × 400 mm
• Weight: 13 kg
• Roller material: Delrin, Polyurethane, or Metal (Steel) (specify at order)
• Body coating: Fully Galvanized Body

Roller Material Options

• Delrin: Long service life, corrosion-resistant, low-friction, quiet operation, and gentle on cable sheaths and indoor floors
• Polyurethane: Excellent wear resistance, high load capacity, shock-absorbing, and non-marking; suitable for both indoor and outdoor use
• Metal (Steel): Maximum impact and abrasion resistance for rugged sites, sharp edges, and heavy cables
