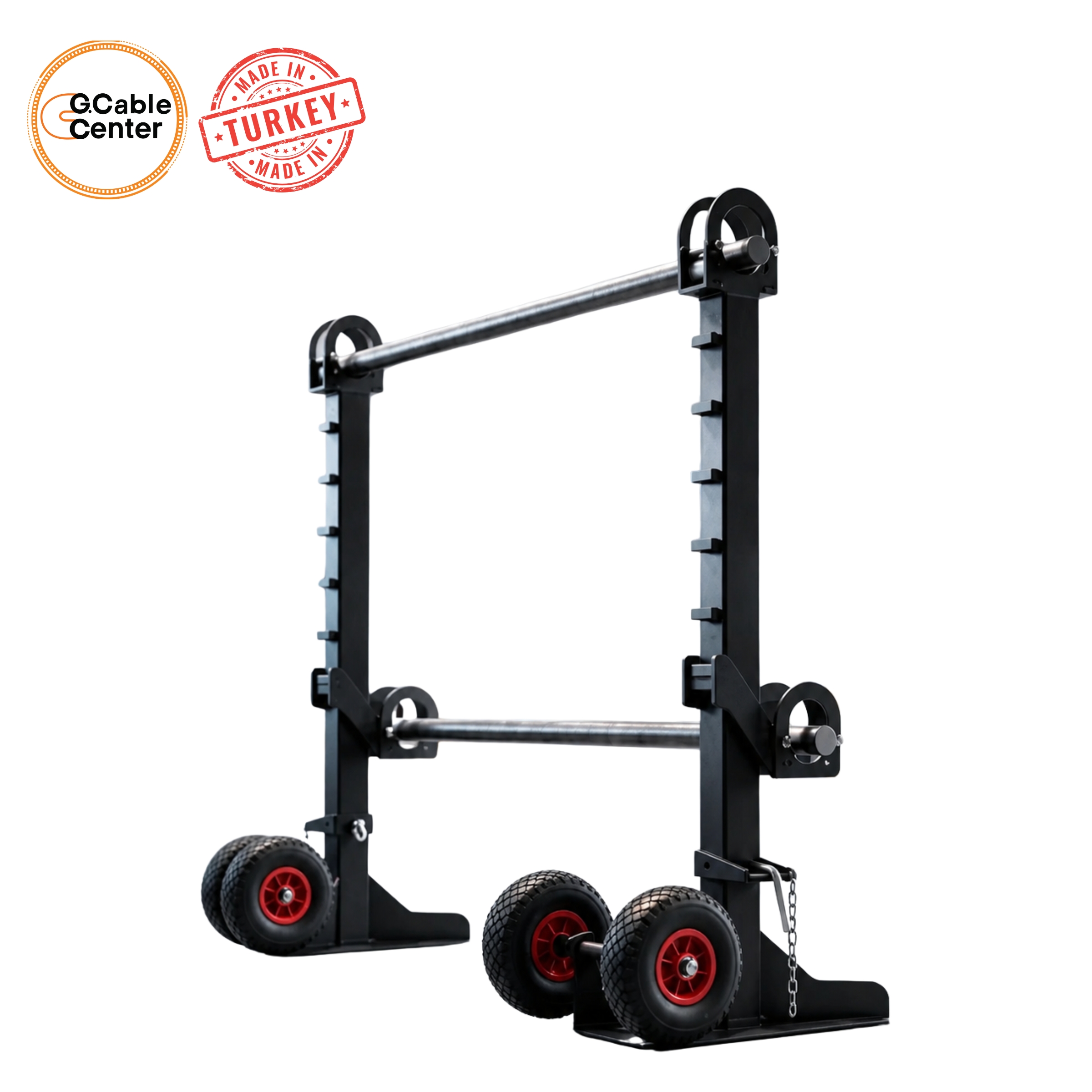

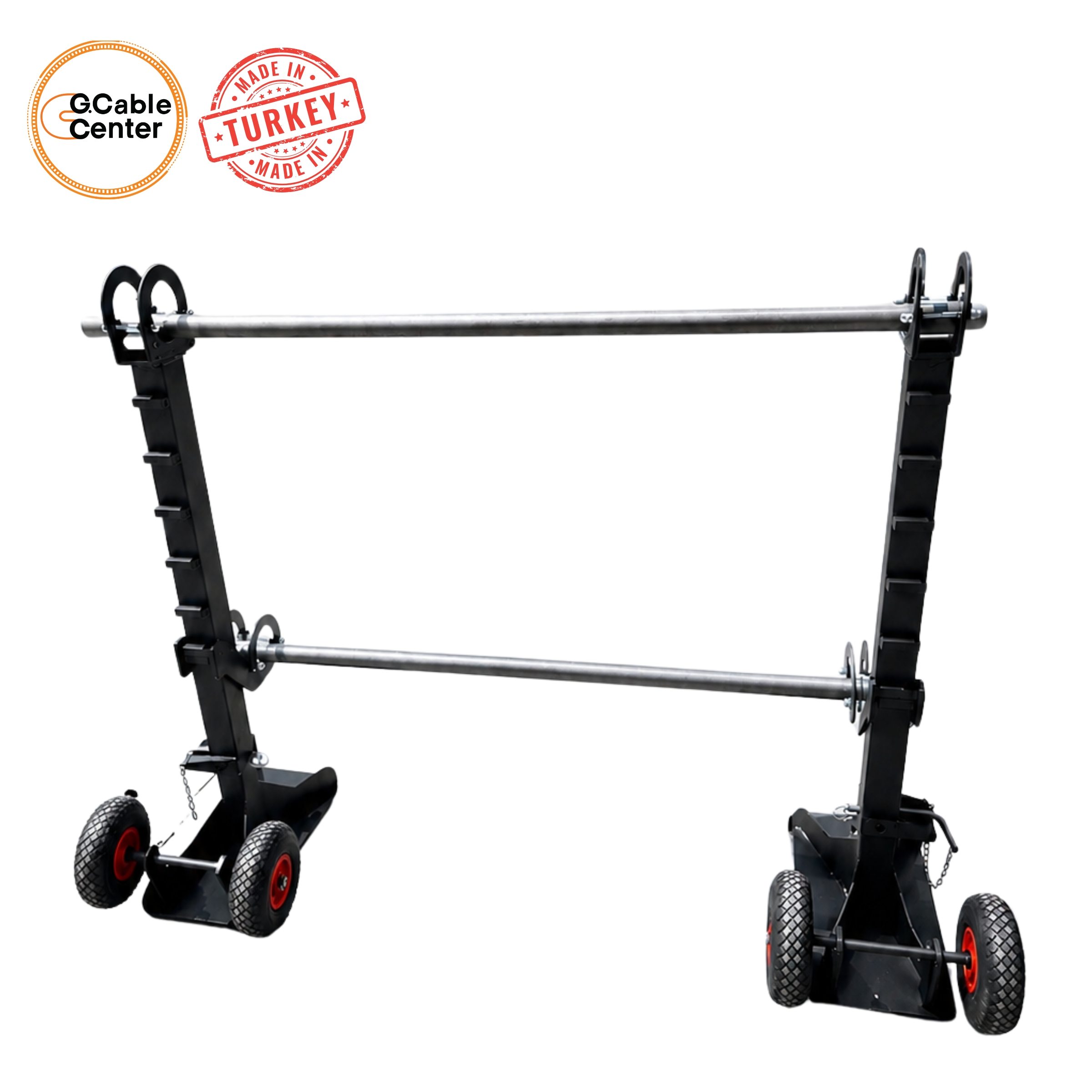

5 TON HYDRAULIC CABLE DRUM LIFTING JACK WITH BEARING HOUSING

5 TON HYDRAULIC CABLE DRUM LIFTING JACK WITH BEARING HOUSING

Product Code: GCC-CDLJ5T-B

Our 5 Ton Hydraulic Cable Drum Lifting Jack with Bearing Housing is engineered for safe, stable, and efficient cable drum handling in demanding field conditions. Designed for energy, telecom, and infrastructure projects, this system ensures smooth and controlled drum rotation through its integrated bearing housing system. The robust structure combined with a 65 mm high-strength steel shaft provides reliable lifting and support for cable drums up to Ø2,400 mm. With its heavy-duty design and integrated mobility features, it delivers long-term durability and operational efficiency in industrial applications.

Technical Specifications

• Capacity: 5,000 kg (5 Ton)
• System type: Hydraulic cable drum lifting jack with bearing housing for smooth and controlled rotation
• Hydraulic system: Dual-arm system with 2 × 3 Ton hydraulic jacks (6 Ton total lifting force)
• Maximum drum diameter: Ø2,400 mm
• Maximum drum width: 1,400 mm
• Shaft diameter: 65 mm
• Dimensions (L × W × H): 1,000 × 350 × 200 mm
• Weight: 95 kg
• Mobility: Integrated wheels for easy transportation

Standard Equipment

• 2 hydraulic lifting jacks (5 Ton capacity)
• Bearing housing system for shaft rotation
• High-strength steel shaft
• Durable steel lifting frames
• Integrated transport wheels

Optional Equipment

• Different shaft diameters and lengths
• Custom capacity options (3T–15T)
• Additional safety locking mechanisms
• Custom configurations based on project requirements
