MOBILE TRAFFIC WARNING TRAILER

MOBILE TRAFFIC WARNING TRAILER

Product Code: GCC-MTWT-01

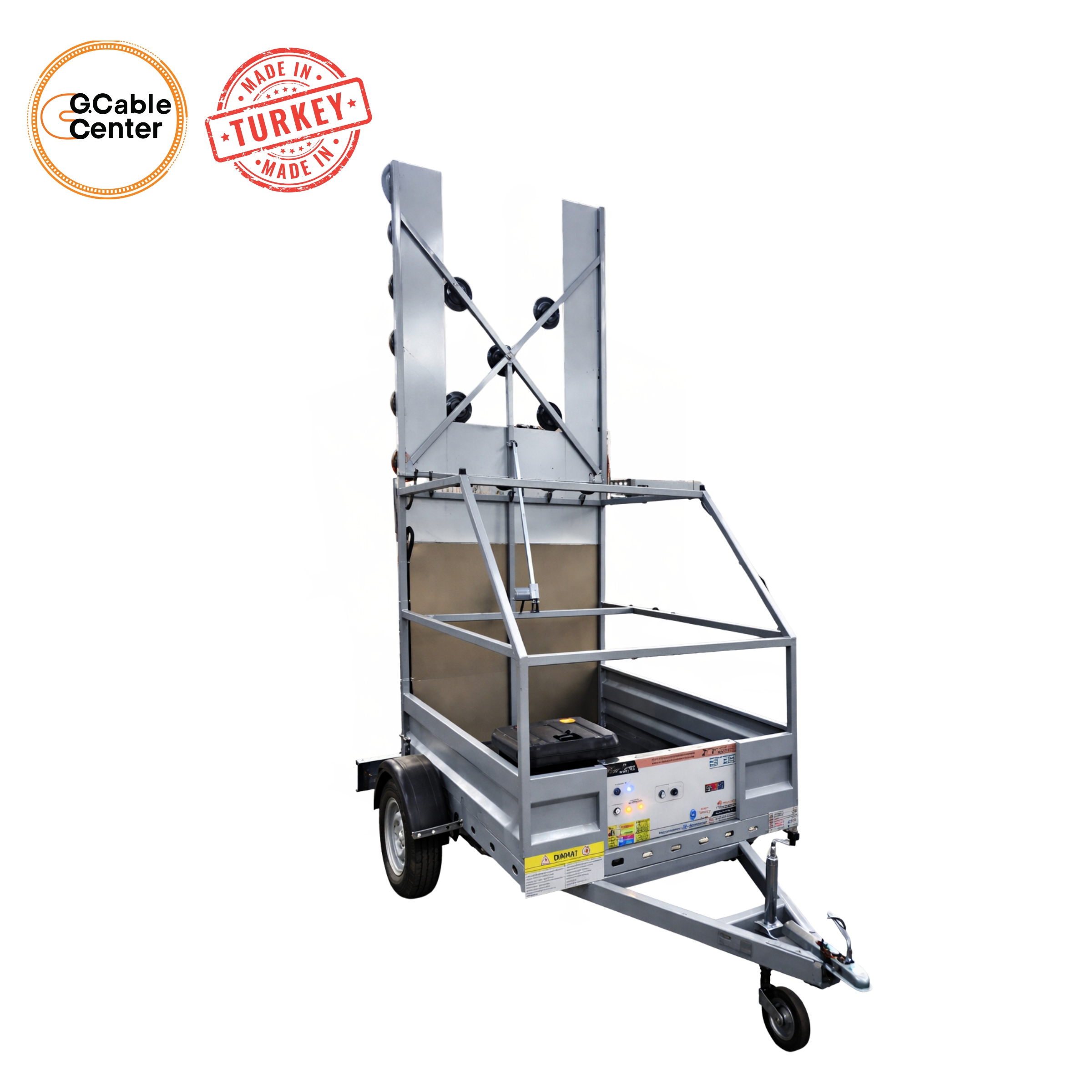

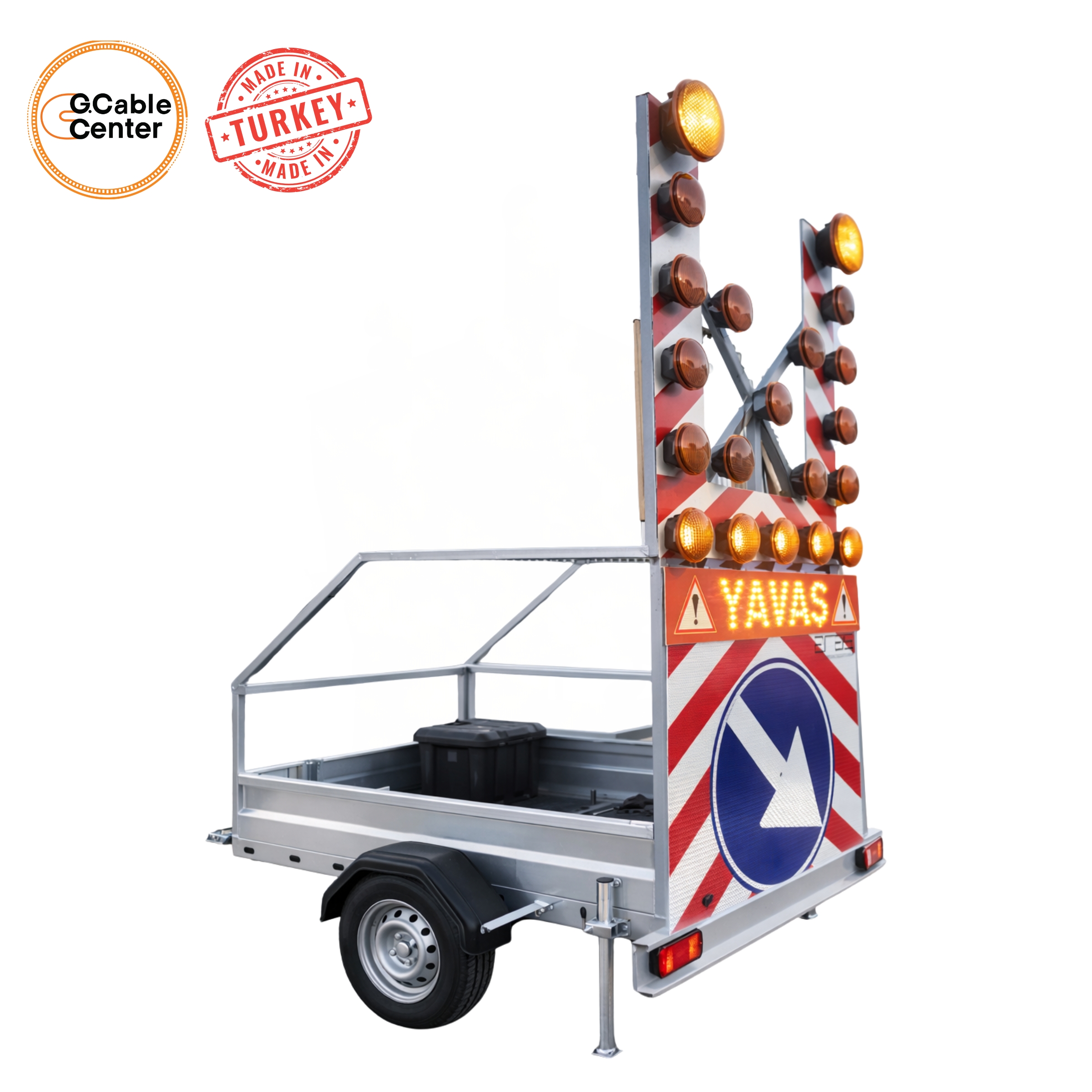

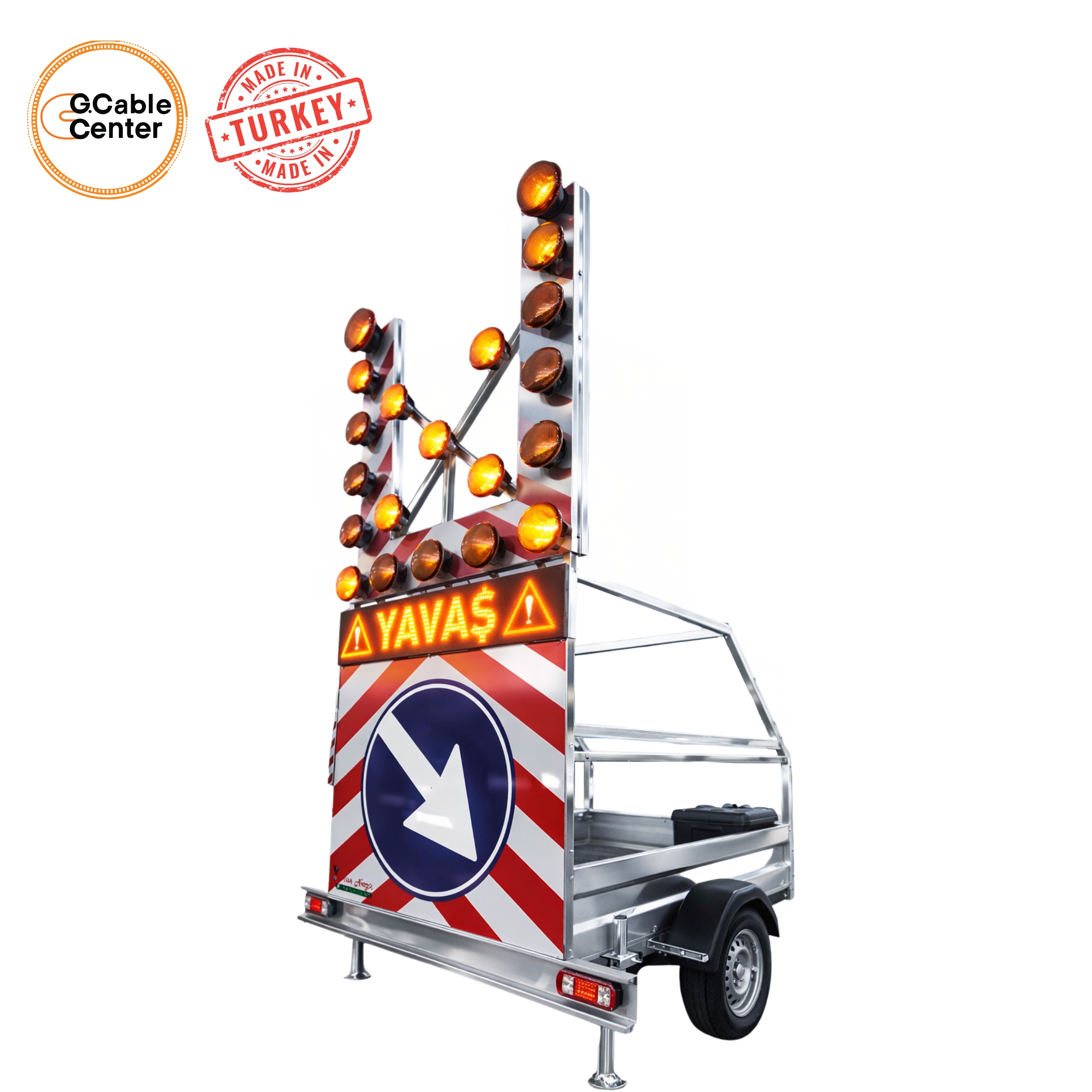

Our Mobile Traffic Warning Trailer is designed for temporary road safety applications, construction zones, maintenance works, and emergency traffic control operations. The system is equipped with high-visibility amber LED warning lamps, illuminated warning panels, and directional signage to ensure clear driver guidance in both daytime and nighttime conditions. Manufactured in compliance with highway standards, the trailer structure is engineered using statically calculated steel profiles, with wind resistance and load-bearing calculations performed to ensure durability and operational stability under adverse conditions. When deployed, the signal system reaches a maximum height of 4000 mm, providing long-distance visibility and enhanced safety performance in active work zones.

Standards and Documentation

• Manufactured in accordance with highway regulations
• Certified drawbar compliant with non-motorized vehicle regulations
• Structural static and wind-load calculations performed
• VIN and identification plate
• Inspection and quality control reports

Technical Specifications

• Trailer type: Mobile traffic warning trailer
• Closed dimensions: 1,500 × 3,000 × 2,000 mm
• Open height (signal deployed): 4,000 mm
• Lighting system: High-intensity amber LED warning lamps
• Axle system: Torsion suspension axle
• Chassis: Structurally calculated steel construction
• Drawbar: Regulation-compliant towing system
• Front support: Mechanical jockey wheel
• Rear stabilization: 2 mechanical stabilizer jacks
• Suspension: Torsion system (not flat-profile axle type)

Standard Equipment

• LED signal lamp assembly with warning configuration
• Directional warning panel and traffic signage board
• Torsion axle suspension system
• Mechanical handbrake system
• Front jockey wheel for independent positioning
• Two rear stabilizer support jacks
• Highway-compliant lighting and reflector system

Optional Equipment

• Custom LED arrow configurations
• Variable message display integration
• Solar panel charging system
• Additional side stabilizer supports
• Custom dimensions and structural configuration
• Galvanized or epoxy-painted chassis finish
